Swiss lathes were originally developed to make the very precise turned parts necessary for fine timepieces. Now these same machines are the gold standard for producing tight tolerances on small components used in the aerospace, medical, pharmaceutical, scientific and electronics industries where precision on the small scale is essential.
What are the components of a Swiss–type lathe?
At first, a Swiss lathe looks like a normal CNC turning lathe, but if you look closely you’ll see a few very important differences.

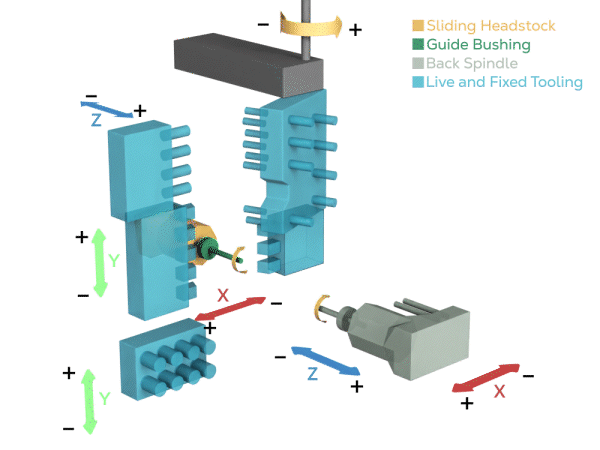

Here are some of the components of a Swiss-type lathe that differentiate it from a conventional lathe and are responsible for its remarkable performance.
Automatic Bar Feeders
Swiss lathes are compatible with auto-loading bar feeders, which provide a continuous material supply for unattended “lights-out” or automated machining.
Main spindle
The main spindle holds the bar stock inside a moveable headstock that runs along linear guides to maintain stability and dampen vibration.
Sub / secondary spindle
The sub spindle holds a semi-finished part from the front, after it’s been cut-off from the main bar stock. This allows separate live tools to perform additional machining on the back of the workpiece.
Guide bushing
A defining feature of Swiss lathes, the guide bushing supports the workpiece close to the cutting tool, minimizing deflection and vibration. This support is essential for maintaining tighter tolerances and producing long, slender components with consistent quality.
Live tooling
Tool holders with independent motors perform CNC milling and drilling operations at any angle to a workpiece. These are used to make complex geometries including through-holes, slots, threads and polygon shapes.
What are the advantage of multiple axes?
The combination of two sliding headstocks, tool gangs, and live tooling provides up to 13 independent axes of movement. This means Swiss turning can make both round and prismatic shapes in a single set-up, saving both time and money while preserving dimensional accuracy.
How does Swiss turning set-up time compare to a conventional turning?
In Swiss turning, the initial programming and machine set-up time usually takes longer. More care is needed to optimize the machine’s movements on many axes while also developing strategies for sufficient chip clearance and lubrication. This is more tricky to do in a small work envelope.
The advantage is that, once properly set-up, a machine can run 24 hours continuously without an operator and with virtually no downtime.
What part sizes, diameters, tolerances, and length-to-diameter ratios suit Swiss machining?
Swiss lathes come in standard unit sizes based on diameter. The current smallest bar stock is 10mm, and the largest is 38mm, although a maximum of 32mm is more common.
On a conventional lathe, the workpiece is held at one end in a chuck. This limits the L:D ratio to 3:1, which can be increased to 12:1 by using a tailstock and steady rest for additional support. Anything beyond this compromises tolerances and surface finishes because the relatively long part will start to deflect away from the cutting tool.
By contrast, a Swiss lathe can easily operate at 20:1 or better. Why is this important to you?
It means that long, thin parts can be made from standard bar stock with little waste. You get the products you need without changing set-ups, machines or entire production processes.
What are the benefits of Swiss-type turning?
Swiss-style turning offers advantages that are unmatched by any other process, making it ideal for certain challenging applications.
Precision
- Tolerances as tight as 2.5 µm
- Excellent performance on diameters < 1mm
- Perfect for critical-fit parts where alignment, clearance, and sealing matter
- The support of the guide bushing enables deeper cuts in a single pass
Fast Cycle Times
- Simultaneous operations
- Fewer setups
- Fast tool changes
- Automated, “lights out” operations
- No secondary finishing for many parts
Versatility
- A second spindle allows for machining on the back side of the part
- Live tooling performs milling and off-axis machining
When should I choose Swiss milling and turning instead of standard CNC machining?
As a product engineer, you way ask when it make sense to use Swiss turning instead of convential CNC turning. These are the main considerations:
- Parts are thin (under 32mm) and cylindrical.
- My priority is very high precision combined with fine surface features.
- The volume is relatively high.
- My part combines both turned and milled features.
- I need a steady, consistent output over a period of time.
- My product is made from stainless steel, aluminum, brass, titanium, superalloys (Inconel) or rigid engineering plastic (PEEK).
Precision Swiss CNC Turning Services
Procision Manufacturing combines CNC turning expertise with cutting-edge Swiss lathes to support your product development goals, whether you’re building the next generation of wearable medical tech or developing aerospace components where failure isn’t an option.
Of course we also combine Swiss turning with our many other fabrication services, including multi axis CNC machining, EDM machining, plastic injection molding, polyurethane vacuum casting and a full range of finishing and post-machining services.
Book A Discovery Call
Not ready for a quote? No worries, Book a quick call with the sales rep in your area.
Our Team
Sales Director Mathieu Windsor
Book A Discovery Call
Not ready for a quote? No worries, Book a quick call with the sales rep in your area.
Our Team
Sales Director
Mathieu Windsor
Setup and Operation of Swiss Lathes
Setting up a Swiss lathe starts with choosing the right cutting tools to suit the part’s shape and the raw material. Then the operator adjusts the guide bushing to ensure the best support for the bar stock. The raw material needs to be aligned and clamped carefully to make sure it’s perfectly in alignment with the axis of rotation.
Once the setup is complete, the sliding headstock pulls the bar stock through the guide bushing that surrounds and supports the workpiece. This keeps it secure while it’s being machined.
Live tools can then approach the workpiece from many angles, including the back side, to perform all necessary machining functions.
In order to maintain the tightest tolerances on every part, the operato constantly monitors tool wear, speeds and feeds, and makes adjustments according to frequent in-process quality inspections.
By mastering the setup and operation process, machinists can unlock the full potential of this advanced CNC machine for high-precision, complex part production.
Why Use a Swiss Lathe? Benefits for Custom Parts Manufacturing
When you need accuracy, speed, and repeatability, especially for small and complex cylindrical parts, Swiss turning is hard to beat.
Precision at the Micron Level
- Tolerances as tight as ±0.0001”
- Excellent performance on diameters < 1mm
- Perfect for critical-fit parts where alignment, clearance, and sealing matter
- Guide bushing support enables deeper cuts in a single pass
Shorter Cycle Times = Lower Cost per Part
- Simultaneous operations
- Fewer setups
- Reduced setup time lowers cost per part and increases productivity
- No secondary finishing for many parts
Less Material Waste
- Minimal overhang past the guide bushing
- Optimized chip load and material usage
- Use of carefully ground stock material enables tighter tolerances and reduces waste
- Ideal for expensive materials like titanium, Inconel, or PEEK
Excellence without compromise: You don’t have to choose between speed, precision, and quality because Swiss-type turning delivers all three.
Swiss-Type Lathe Applications: Where Small Means Critical
Swiss-type turning is ideal for micro-scale components with demanding functional requirements. CNC Swiss machines excel at producing extremely small parts for critical applications across industries. Common examples include:
- Medical microfluidic fittings and drug delivery components
- Electronics: wearable casings, micro-gear shafts
- Robotics and automation sensors, actuators, and control arms
- Drones: prop shaft bushings, housing features, and signal contacts
- Flow control devices in gas, liquid, and hydraulic systems
Collaborate to Solve: Our dedicated team of engineers partners with you to balance cost, function, and manufacturability from day one, ensuring quality and reliability in every CNC machining project.
Precision Swiss CNC Turning Services
Procision Manufacturing combines CNC turning expertise with cutting-edge Swiss lathes to support your product development goals, whether you’re building the next generation of wearable medical tech or developing aerospace components where failure isn’t an option.
Our machinists operate advanced Swiss turning centers, ensuring exceptional precision and efficiency in every project.
- Precision tolerances down to ±0.0001”
- Prototypes, pre-production, and scaled production
- Full support for metal and high-performance plastic materials
- Specialized operations including single point threading for high-accuracy components
Future Developments in Swiss Turning Center Technology
The future of Swiss-type lathes is being shaped by rapid advancements in CNC technology, machine design, and materials science. One exciting development is the introduction of new materials and coatings for tooling and guide bushings, such as advanced ceramics and nanomaterials. These promise to enhance durability and performance during high-precision machining.
CNC systems are also becoming more sophisticated, with smarter controls that can optimize machining processes, reduce cycle times, and improve overall efficiency. Automation and robotics can be integrated into Swiss-type lathe manufacturing for more consistency and faster throughput.
